G1 10W Diode Laser Cutter & Engraver

€399,00 EUR €599,00
Payments: PayPal Visa Mastercard American Express Discover JCB Klarna

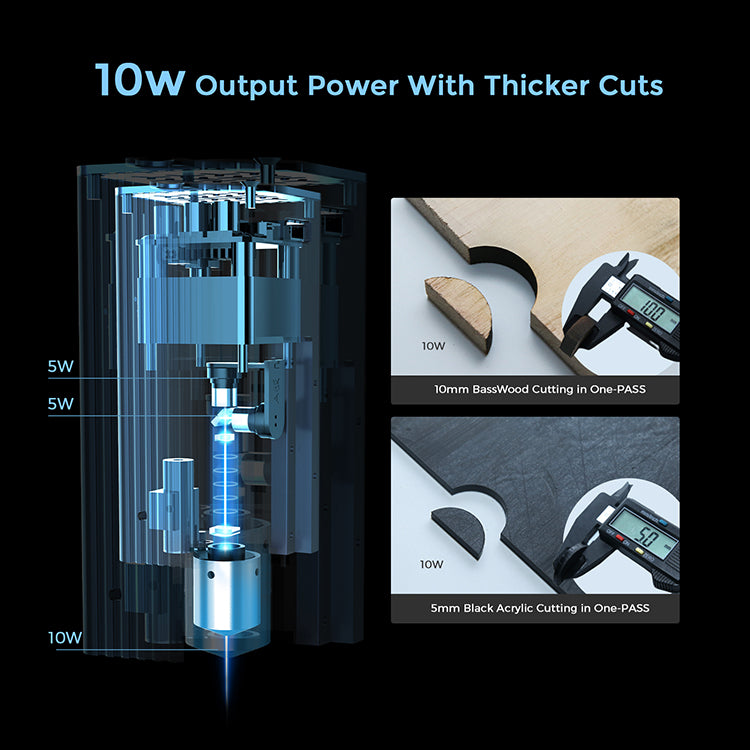

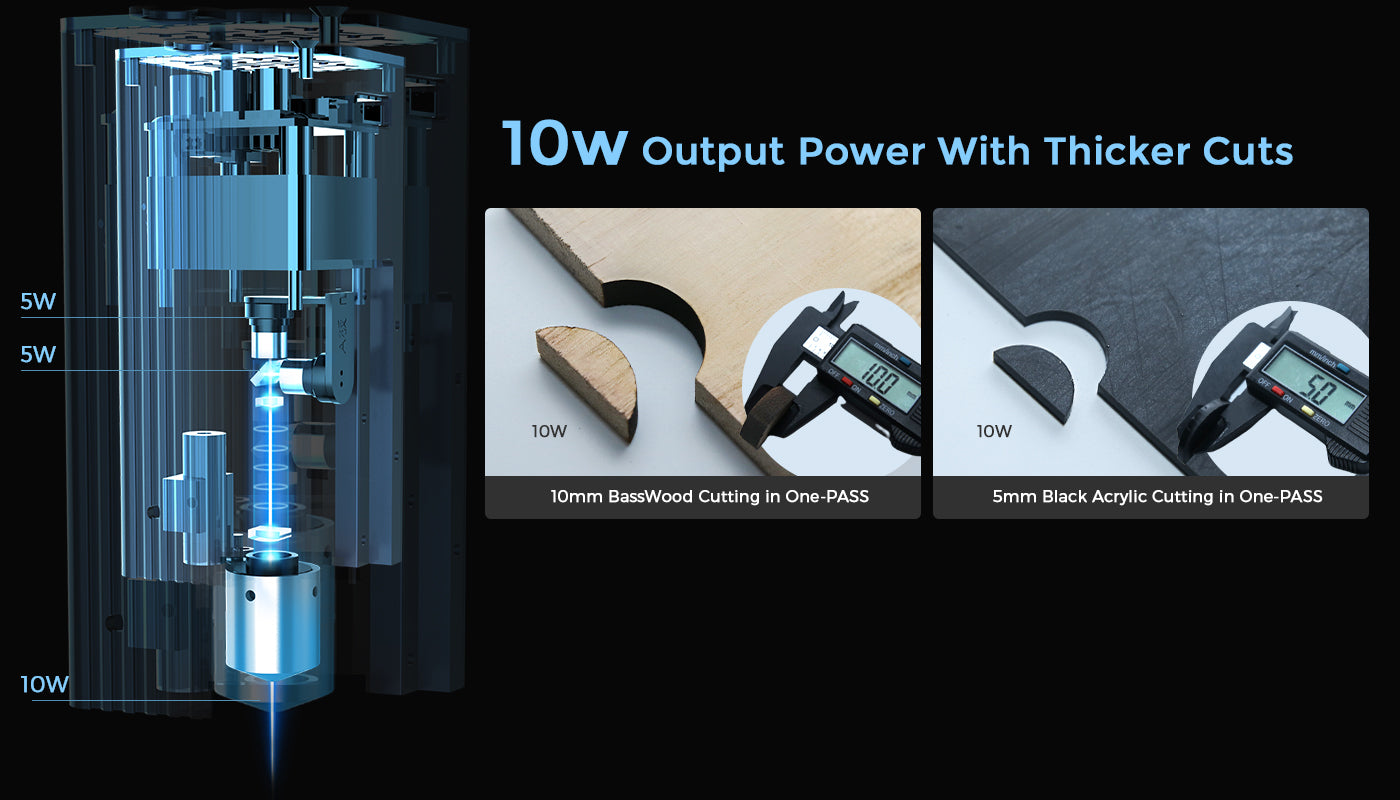

  • 10W Output Power
  • 400mm/s Speed
  • Simple & Industrial Structure
  • Lightburn Compatible
  • Super Air Assist

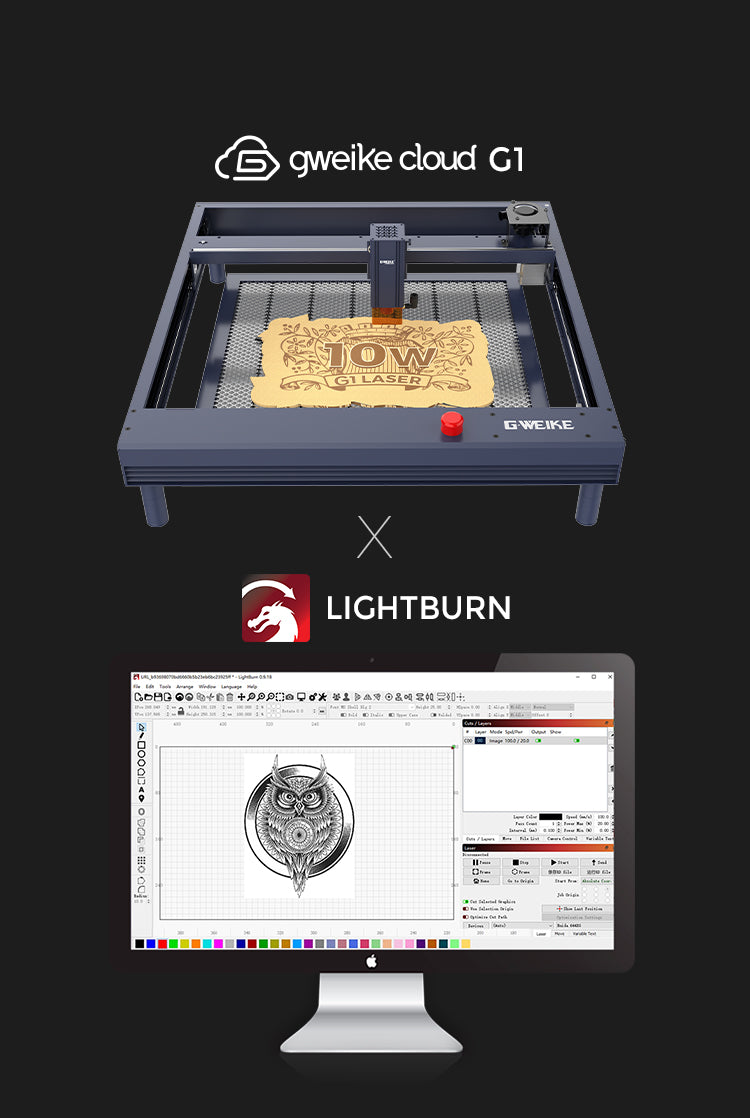

#gweike cloud × Lightburn Compatibility

G1 emerges as a combination of compatibility and efficiency, aiming to save money and time.

The layout, editing, and control software for common laser cutter. Engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

400mm/s

Be a speed understander, not a speed reader.

  • G1 Laser 10W

    7Min

    Material: Basswood

    Power: 50%

    Speed: 400 mm/s

  • Others

    10Min

    Material: Basswood

    Power: 50%

    Speed: 300 mm/s

#gweike cloud × Accuracy

Reaches 0.01mm Precison.

Simple & Industrial Structure

  • Super light aluminum alloy frame with excellent thermoplasticity, anodizing effect and corrosion resistance
  • High positioning accuracy with 2GT timing belt
  • High-speed rail optical shaft slot wheel, fast running and easy maintenance

#gweike cloud × Safety

Gyroscope - the emergency stop will be triggered by any tipping when processing.

Radiationproof Goggles

Eyes protection & lightweight & comfortable wrap-around

Emergency Stop Button

One-touch stop to prevent any injury or damage when processing

#gweike cloud × Focusing

Easy focus with a focus block

#gweike cloud × Risers

Equipped with set of risers to engrave larger projects.

#gweike cloud × Rotation

G1 versatile rotary attachment works perfectly with cylindrical objects.

What G1 Can Do

  • Plywood
  • Acrylic
  • Paper
  • Leather
  • Rock
  • Coating Metal

gweike cloud G1 unboxing



Specs Summary

  • Tech Specs
  • Material Cuts
  • Material Engraves
Model specification G1
Machine Power
120W
Laser Module Output Power
10W
Laser Wavelength
 450nm
Laser Spot
 0.08mm*0.06mm
Overall Machine Size 613*590*160mm
Machine Weight
 6.6KG
Engraving Range
 400mm*400mm
Engraving Accuracy
 0.01mm
Engraving Speed
 400mm/s
Connection Method
 USB
Support File Format *.ai *.pdf *.sc *.dxf *.hpgl *.plt *.rd *.scpro2 *.svg *.lbrn *.lbrn2 *.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga
Support System
 Mac/Windows/Linux
Control Software
 Lightburn
Input Power 120w24v5A
Material Thickness Cutting
Power Speed Pass
Basswood  3mm 100% 5mm/s 1
Black Acrylic 3mm 100% 5mm/s 1
Black Acrylic 5mm 100% 2mm/s 1
Corrugated Paper 2mm 90% 5mm/s 1
Corrugated Paper 5mm 95% 3mm/s 1
Corrugated Paper 6mm 100% 2mm/s 1
Corrugated Paper 8mm ×
Aluminum Business Card (Black Layer) 0.2mm ×
Aluminum Business Card (Blue Layer) 0.2mm ×
Aluminum Business Card (Pink Layer) 0.2mm ×
Aluminum Business Card (Gold Layer) 0.2mm ×
Rock Slabs × ×
Paperboard 0.5mm 85% 30mm/s 1
Felt Fabric 2mm 75% 15mm/s 1
Leather 1.5mm 90% 2mm/s 1
MDF 2mm 97% 2mm/s 3
Rubber 3mm     ×
Brown Paper 1mm 85% 30mm/s 1
Paulownia Planks 10mm 100% 2mm/s 2
Paulownia Planks 3mm 90% 4mm/s 1
Paulownia Planks 6mm     100% 2mm/s 1
Pinewood 5mm 98% 2mm/s 1
Cherry 2mm 90% 5mm/s 1
Cherry 3mm 100% 3mm/s 1
Safflower Pear 2mm 100% 3mm/s 1
Safflower Pear 3mm 100% 2mm/s 1
Beech 2mm 100% 3mm/s 1
Beech 3.5mm 100% 2mm/s 1
Walnut 2mm 100% 3mm/s 1
Material Thickness Image Engraving Vectorgraph Engraving
Power Speed Pass Power Speed Pass
Basswood  3mm 75% 100mm/s 1 75% 100mm/s 1
Black Acrylic 3mm 30% 100mm/s 1 30% 100mm/s 1
Black Acrylic 5mm 30% 100mm/s 1 30% 100mm/s 1
Corrugated Paper 2mm 50% 100mm/s 1 50% 100mm/s 1
Corrugated Paper 5mm 50% 100mm/s 1 50% 100mm/s 1
Corrugated Paper 6mm 50% 100mm/s 1 50% 100mm/s 1
Corrugated Paper 8mm 50% 100mm/s 1 50% 100mm/s 1
Aluminum Business Card (Black Layer) 0.2mm 30% 100mm/s 1 30% 100mm/s 1
Aluminum Business Card (Blue Layer) 0.2mm 45% 100mm/s 1 45% 100mm/s 1
Aluminum Business Card (Pink Layer) 0.2mm 45% 100mm/s 1 45% 100mm/s 1
Aluminum Business Card (Gold Layer) 0.2mm 45% 100mm/s 1 45% 100mm/s 1
Rock Slabs × 75% 30mm/s 1 75% 30mm/s 1
Paperboard 0.5mm 20% 100mm/s 1 20% 100mm/s 1
Felt Fabric 2mm × ×
Leather 1.5mm 50% 100mm/s 1 50% 100mm/s 1
MDF 2mm 85% 50mm/s 1 85% 50mm/s 1
Rubber 3mm     75% 30mm/s 1 75% 30mm/s 1
Brown Paper 1mm 20% 100mm/s 1 20% 100mm/s 1
Paulownia Planks 10mm 75% 100mm/s 1 75% 100mm/s 1
Paulownia Planks 3mm 75% 100mm/s 1 75% 100mm/s 1
Paulownia Planks 6mm     75% 100mm/s 1 75% 100mm/s 1
Pinewood 5mm 75% 100mm/s 1 75% 100mm/s 1
Cherry 2mm 75% 100mm/s 1 75% 100mm/s 1
Cherry 3mm 75% 100mm/s 1 75% 100mm/s 1
Safflower Pear 2mm 75% 100mm/s 1 75% 100mm/s 1
Safflower Pear 3mm 75% 100mm/s 1 75% 100mm/s 1
Beech 2mm 75% 100mm/s 1 75% 100mm/s 1
Beech 3.5mm 75% 100mm/s 1 75% 100mm/s 1
Walnut 2mm 85% 50mm/s 1 85% 50mm/s 1
