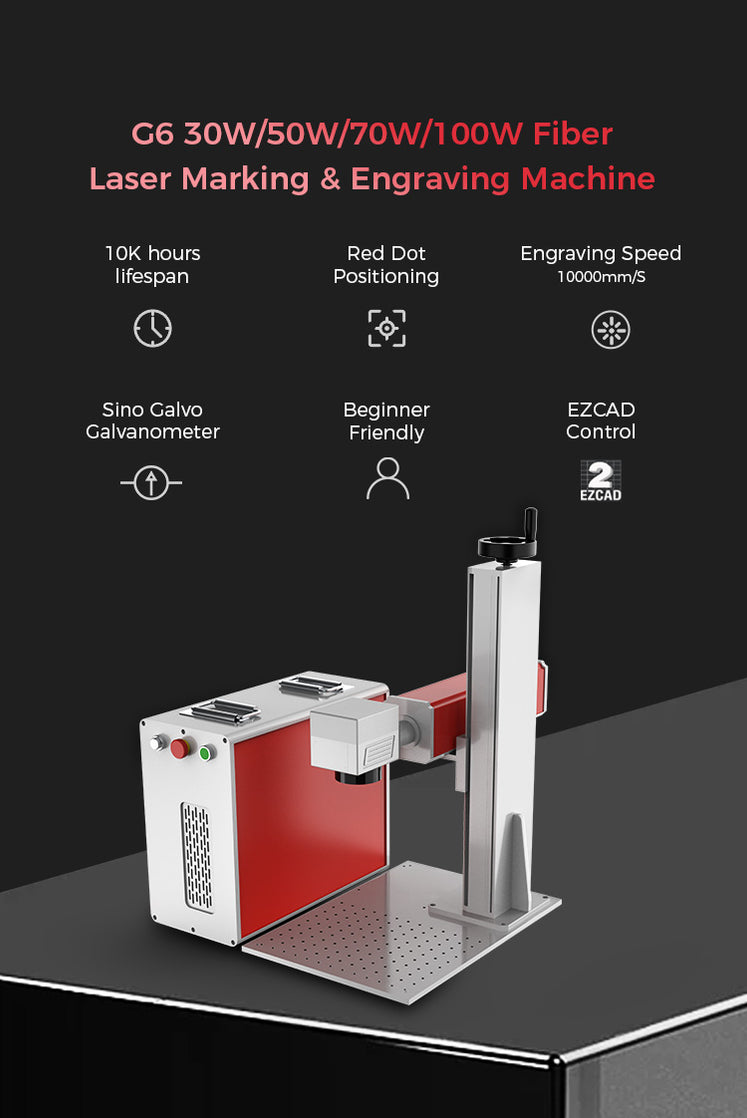

G6 30W/50W/70W/100W Fiber Laser Marking & Engraving Machine
€2.329,00 EUR
Free shipping I ETA 20 days
Payments:
Package List
G6 30W / 50W / 70W / 100W Fiber Laser
Marking & Engraving Machine
Unleash the productivity with unparalleled details
- Embossing
- Vector
- Rotary
- Photo
- Cutting
- Metal
- Leather
- Glass
- Plastic
- Tile
- Rock
Raycus Q-Switched Pulse Fiber Laser
-Highly stable laser output & single-pulse energy
-Exceptional peak power, optional spot diameter
-Higher marking efficiency & reliability

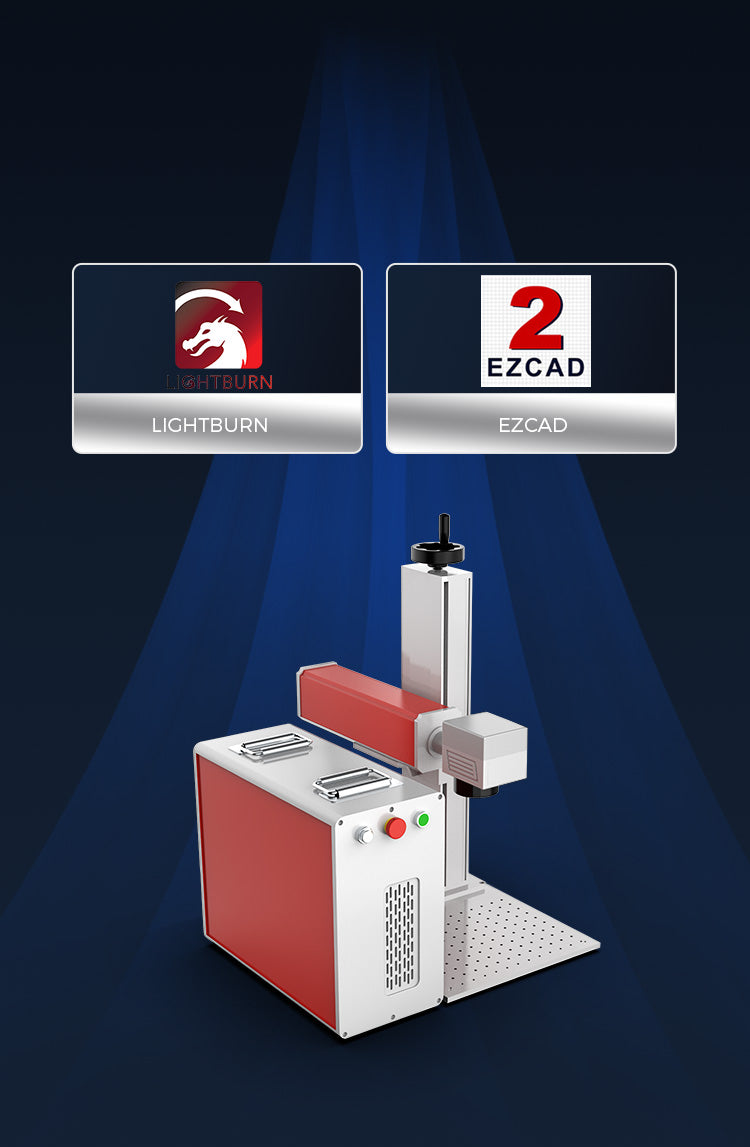

Support Lightburn (EZCAD Control)
-Rotating engraving
-Multi galvanometer compatibility
-Support auto focus
Sino Galvo Galvanometer
-High speed galvanometer scanning
-Adopting SCANLAB technology, digital signal
-Higher precision and speed
Specs Summary
| Laser Power | 30W/50W/70W/100W |
| Laser Wavelength | 1064nm |
| Q-frequency | 1-4000khz |
| PMW | 0-20, Adjustable |
| Divergence | 0.3mard |
| Marking Range | 110*110mm/150*150mm/175*175mm/220*220mm/250*250mm/300*300mm |
| Minimum Character | O.1mm |
| Minimum Line Width | 0.01mm |
| Minimum Depth | 0-1mm(Depending on the materials) |
| Engraving Line Speed | ≤7000mm/s |
| Repeatability Accuracy | ±0.001mm |
| Beam Quality | M2:1.2-1.8 |
| Operating System | Windows, MacOS, and Linux |
| Graphic Format Supported | BMP,JPG,GIF,PNG,TIF,AI,DXF,DST,PLT,etc. |
| Working Voltage | 110-220V/50Hz |
| Unit Power | <0.5kw |
| Working Environment Required | Clean and dust free or dust less |
| Laser Module Lifespan | >100000 hrs |
| Laser Source | Raycus Q-S |
| Laser head | Sino-galvo |
| F-thete Lens | wavelength |
| Control | EZCAD2 |
