gweike cloud Laser Cutter & Engraver CO2 (50W) Basic II

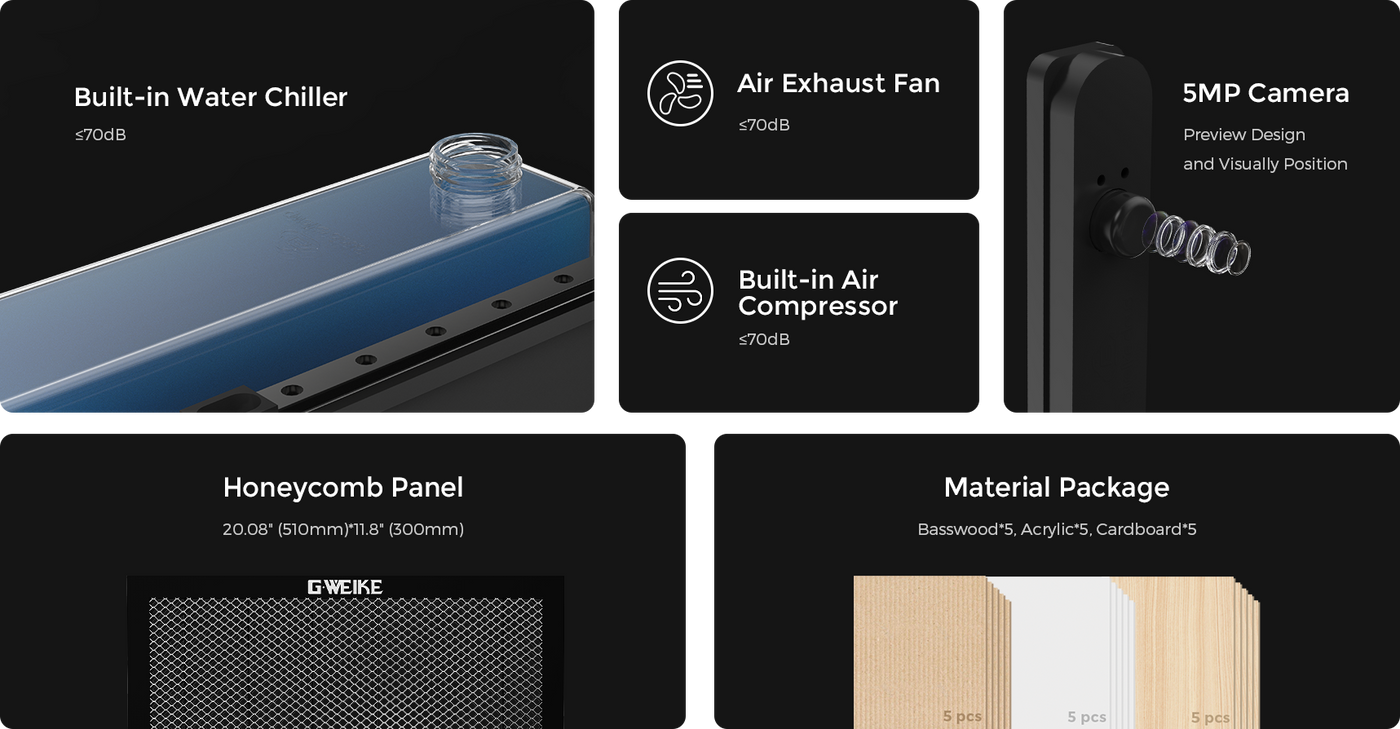

- 1. Built-in Water Chiller, ≤70dB
- 2. Air Exhaust Fan, ≤70dB
- 3. Built-in Air Compressor, ≤70dB
- 4. 5MP Camera, Preview Design and Visually Position.
- 5. Honeycomb Panel, 20.08" (510mm)*11.8" (300mm)
- 6. Material Package：Basswood*5, Acrylic*5, Cardboard*5
- 7. Gweike Cloud Web Software with Free Online Design Library and Control Motherboard Upgrade
Gweike Cloud Web APP(provided)
Free Online Design library (only for web app)
If you don’t have professional drawing design experience or you don’t have time to design drawings, Gweikecloud provides massive materials for free download or you can purchase online
Control Mother Board Upgrade
The machine control mother board can be upgraded, constantly upgraded with new features for free.
When there are problems during machine operation, the cloud control software will show a prompt.
gweike cloud supports gweike cloud Online, gweike cloud Offline, and Lightburn software. Connections are possible through WiFi, network cable, or USB cable.
Perfect for people living in apartments or rooms without windows. Three stage filtration includes bag filtration of large particles, HEPA filtration of particles >0.03μm, and activated carbon to absorb smoke and dust odors.
The Quieter the Better
During normal operation, gweike cloud only generates 70 dB of sound. The fan’s speed is automatically adjusted based upon real-time temperature and the sound can be 16 dB lower than that so you can focus on your project.
What Other Advantages?
Machine Bottom Feeding Design
Top and bottom compartments can be used together allows for a bigger work area.
Can engrave on spheres, tilted planes, curved surfaces, and materials with different heights. It can create simulated 3D images on diamonds, wood, acrylic, etc.
Cloud online Operation
Your gweike cloud runs from a web browser, which means there’s no software to install - ever. Drag and drop your designs right onto your material. Upgrades are instant and seamless
Online Design Catalog
If you do n’t have professional drawing design experience or you do n’t have time to design drawings, Gweikecloud provides massive materials for free download or you can purchase online
Two Y-axis Simultaneous Motion Design
The Y-axis on both sides have been equipped two rails guide to ensure run more smoothly and higher cutting performance.
Three-axis Adopts Linear Guide
Adopted Taiwan Hiwin 3 axis linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.
Safe For Children
Adopt fully enclosed structural design to give users the best protection.Products are CE-certified, FCC-certified, FDA-certified, all electronic components comply with 3C standards.
Convenient- You can remotely control computers and machines, adjust parameters and solve problems.
Laser Power 50W
Laser Type CO₂ Glass Laser Tube
Safety Guard Class I (FDA Certified)
Work Table Area 20.08" (510mm)*11.8" (300mm)
Max. Workpiece Height(without honeycomb tray) 2''（51mm)
Work Table Surface Black (Special surface finishing technique helps reduce burn marks or discoloration)
Max. Cutting Depth 0.59''（15mm） Basswood
Max. Carving Speed 600mm/s
Carving Precision 0.001” (0.025mm)
Noise Rating ≤70dB
Focus Mode AI Visual AF/Material Recognition AF/Material Set-up AF
Camera High-resolution Ultra-wide Camera
Number of Pixels (Effective) 5MP
Visible Area 19.29'' x 11.42''
Positioning AI Visual Positioning Error range ≤ 2mm
Operating Systems Windows/macOS
Control Software Gweikecloud Web Based,Gweikecloud Offline, Lightburn
Connection / Transmission Wi-Fi, USB, Ethernet
Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Design Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc.
Power AC 110-220V±10%,50-60Hz
Work Consumption (without fan) 550W
Nonoperating Temperature 0~45°C
Relative Humidity 5~90°C
Operating Ambient Temperature 0~35°C
Processing Area 20.08" (510mm)*11.8" (300mm)
Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)
Cameras: 5 MP ultra-wide-angle camera wide angle & macro √
Full autofocus √
Water Chiller √
Dual high-efficiency internal LED strips √
|gweike cloud Basic||Glowforge|
|Working Area||510mm*300mm||495mm x 279mm|
|Software||Lightburn, Offline software, gweike cloud Web base||Glowforge Web base|
|Laser Power||50W||40W(Basic/Plus), 45W (Pro)|
|USB Port Support||Yes||No|
|Inline Duct fan||Yes||No|
|After-sale Support||7*24 online service||Appointment only, by email|
|Delivery||7-14 days, oversea warehouse||2 weeks, longer delivery time(Basic)|
|Warranty Time||12 month||12 months, 6 months(Basic)|
|Mother of Pearl||×||√|
|Delivery address||Shipping from||Logistics Providers||Freight ($)||Estimated Delivery Time (day)|
|United States||United States||FedEX/UPS||Free||7~15|
|United States * Hawaii/Alaska/Guam/Puerto Rico||China||FedEX/UPS||$200||30~45|
|Austria, Belgium, Bulgaria, Croatia, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden.||German||FedEX/UPS||Free||7~15|
|Other countries||China||By air or sea||confirm with us||15-60|
Details- What Are Included
